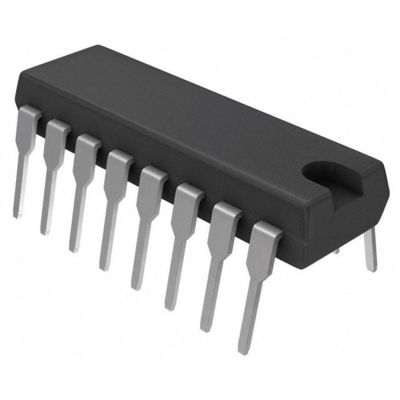

74LS85 Comparator Integration
74LS85LS series integrators are used in processing digital signals, flip flop circuits, shift registers, counters and display drivers. 74LS type integrated circuits (Low-power Schottky) family TTL integrations are fast and need more power.74HC type integrated circuits are high speed CMOS circuits, created by combining TTL speed and 4000 series that consume very little power.
74LS85 Technical Specifications
Manufacturer | Texas |
Product Category | Logic Comparator |
Sherry | SN74LS85 |
Resolution | N / A |
Supply Voltage (Max.) | 5.25 V |
Supply Voltage (Min.) | 4.75 V |
Sheath Type | PDIP-16 |
Mounting Type | BOTTOM |
Minimum Process Temperature | 0 C |
Maximum Process Temperature | + 70 C |
Development Kit | N / A |
Documents
- 74LS85 DatasheetCheck the file.
