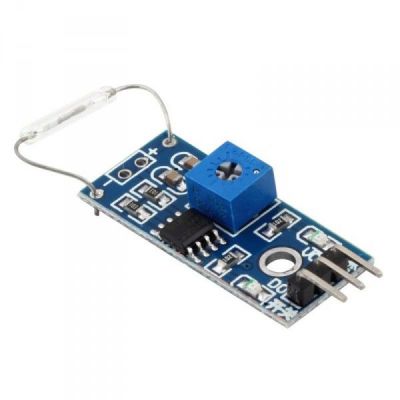

Reed Relay Module (Compatible with Development Boards)

Reed Relay Module

RelayIt is a mechanical switching unit that can be controlled electrically. It consists of two main parts: relay coil and contactors. The relay coil, over which current flows, creates a magnetic field and attracts the contacts. Thus, relay contacts change position.

It is one of the circuit components preferred in telecom applications, gas detector circuits, RF control applications, Infrared control applications, small volume circuits (gum relay) etc.

It is used in the control of load currents between 1A-40A at operating voltages of 5V, 9V, 12V, 24V, 48V, 220V. Single and multiple contact output possibilities are available.

Reed Relay Module (Compatible with Development Boards) Technical Specifications

Comes with fixed bolt hole for easy installation.

Working distance: 1.5M

Working voltage: 3.3V-5V

Output Type: Digital switching output (0 and 1)

Size: 3.2 x 1.9 x 0.7 cm

Net weight: 4 g

Color: As shown in the pictures
