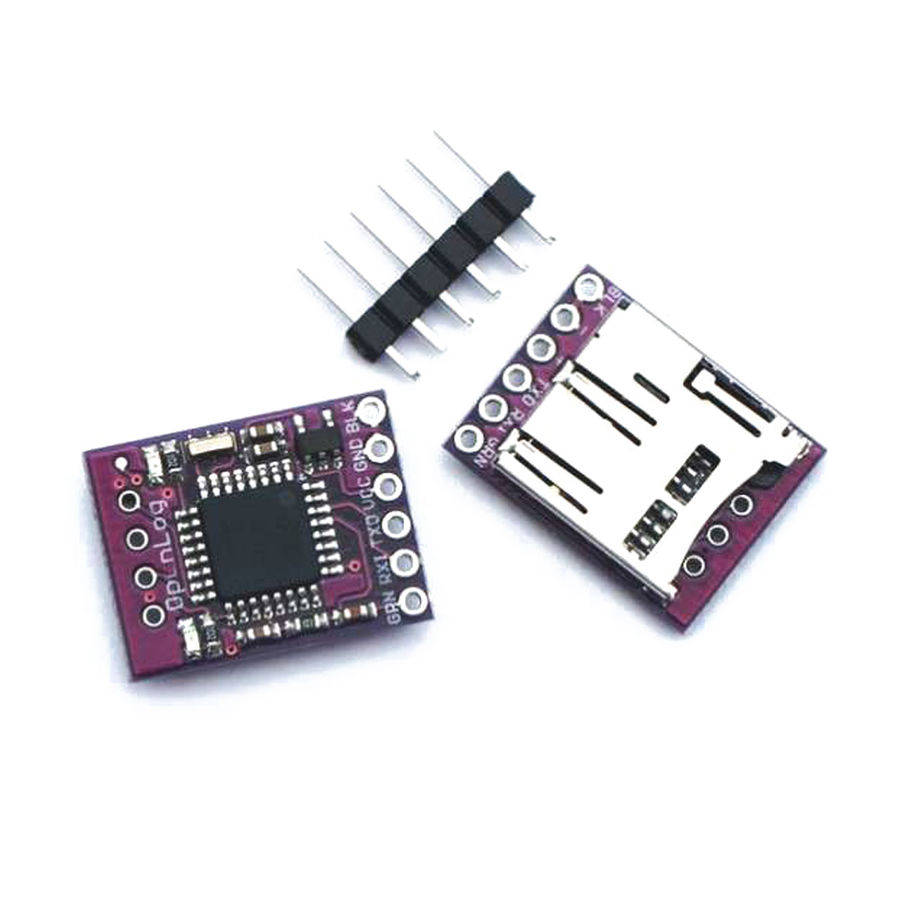

Data Logger Module - Micro SD

SD DataloggerRecords data from the universal UART serial port to the memory card. It works like a black box that saves data from the host device as text on the memory card. This product can be used with clean flight software for flight control board. It depends on the respective serial port. By adjusting the host software's cleanflight configurator, important operating data of the drone can be saved on the memory card. You can detect flight record analysis with Blackbox flight data recorder software.

Note:

  • After inserting the memory card for the first time, the config.txt file will be created on the memory card containing the baud rate parameter of the serial port. This parameter can be changed. Please connect the flight controller or serial port of the main circuit. The baud rate is consistent with the baud rate of the recorder.

SD Datalogger Technical Specifications

  • Memory format is FAT32, the memory supports up to 64GB
  • UART serial interface
  • Adjustable baud rate
  • Default bootloader pro Mini atmega328P 5V 16MHz
  • Support storage / fat32 format tf card, storage capacity up to 32GB
  • It has a simple command line interface
  • Change the config file on the tf card on the computer (if it is a new card, it will be created automatically when the card is first turned on after the first insertion) and you can change these settings. You do not need to buy any special tools to meet your needs and change the series settings.
  • Three modes: new, add, command
  • Baud rate can be set to 300-1000000bps
  • Make sure the minimum connections to run are vcc, gnd, rx
  • Two LED lights indicate working status
  • Input voltage is between 3.3V to 12V, preferably 3.3 to 5V.
  • Standby current 2ma, maximum recording rate 6ma

Useful Links

" ["DOCUMENT_INFO"]=> string(0) "" ["WARRANTY_INFO"]=> string(0) "" ["DELIVERY_INFO"]=> string(0) "" ["WAREHOUSE"]=> string(0) "" ["DELIVERY_DAY"]=> string(0) "" ["IS_VIDEO_ACTIVE"]=> string(1) "0" ["NOTES"]=> string(0) "" ["TAGS"]=> array(0) { } ["IS_ORDER_NOTE_ACTIVE"]=> bool(false) ["IS_CASH_POINT_ACTIVE"]=> bool(false) ["RELATED_PRODUCTS_IDS1"]=> string(0) "" ["RELATED_PRODUCTS_IDS2"]=> string(0) "" ["RELATED_PRODUCTS_IDS3"]=> string(0) "" ["RELATED_PRODUCTS_IDS1_COUNT"]=> int(0) ["RELATED_PRODUCTS_IDS2_COUNT"]=> int(0) ["RELATED_PRODUCTS_IDS3_COUNT"]=> int(0) ["IS_POPUP_PHOTO_ACTIVE"]=> string(1) "1" ["MIN_ORDER_COUNT"]=> string(1) "1" ["COMMENT_ITEMS"]=> array(0) { } ["DISPLAY_GAIN"]=> bool(false) }

Openlog SD Card Data Logger

Marka/Menşei: Thinary Electronic
Stok Kodu : 12954

196.34 TL + KDV
235.61 TL KDV Dahil

-

+
Add to Cart
Add to Favorites
Share:
  • Features
  • Payment Options
  • Comments (0)
  • Images

  • Data Logger Module - Micro SD

    SD DataloggerRecords data from the universal UART serial port to the memory card. It works like a black box that saves data from the host device as text on the memory card. This product can be used with clean flight software for flight control board. It depends on the respective serial port. By adjusting the host software's cleanflight configurator, important operating data of the drone can be saved on the memory card. You can detect flight record analysis with Blackbox flight data recorder software.

    Note:

    • After inserting the memory card for the first time, the config.txt file will be created on the memory card containing the baud rate parameter of the serial port. This parameter can be changed. Please connect the flight controller or serial port of the main circuit. The baud rate is consistent with the baud rate of the recorder.

    SD Datalogger Technical Specifications

    • Memory format is FAT32, the memory supports up to 64GB
    • UART serial interface
    • Adjustable baud rate
    • Default bootloader pro Mini atmega328P 5V 16MHz
    • Support storage / fat32 format tf card, storage capacity up to 32GB
    • It has a simple command line interface
    • Change the config file on the tf card on the computer (if it is a new card, it will be created automatically when the card is first turned on after the first insertion) and you can change these settings. You do not need to buy any special tools to meet your needs and change the series settings.
    • Three modes: new, add, command
    • Baud rate can be set to 300-1000000bps
    • Make sure the minimum connections to run are vcc, gnd, rx
    • Two LED lights indicate working status
    • Input voltage is between 3.3V to 12V, preferably 3.3 to 5V.
    • Standby current 2ma, maximum recording rate 6ma
