2.4 Inch Nextion HMI Touch TFT Lcd Screen + 8 Port GPIO / 16MB Internal Memory

2.4 Inch Nextion HMI Touch TFT Lcd Display

Nextion Gelişmiş sürümleri daha güçlüdür. Temel Nextion ekranlarıyla karşılaştırın, bazı yeni fonksiyonlar ekledi: dahili RTC'yi destekler, veriyi Flash'a kaydedebilir, GPIO'yu, daha büyük flaş kapasitesini ve daha büyük CPU saatini destekler. Geliştirilmiş Nextion serisi, 2.4 " 'den 7.0" "e kadarki 7 boyutlu kapaklara sahiptir.

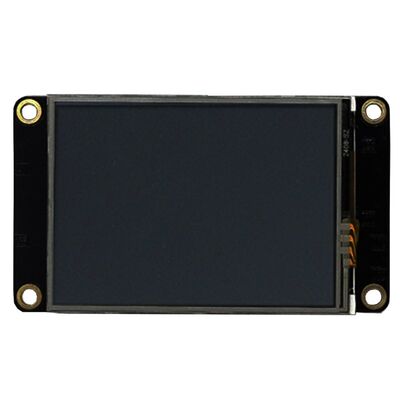

2.4 Inch Nextion HMI TFT Touch LCD Display

Nextion Enhanced NX3224K024, 16MB Flash veri depolama alanı, 1024 baytlık EEPROM, 3584 byte'lık daha yüksek RAM'a sahip güçlü bir 2.4 " 'HMI TFT ekran. GPIO desteklenirken artık dış aygıtları kontrol etmek için Nextion'u kullanabilirsiniz.

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or device. It is the best solution to replace traditional LCD and LED Nixie tubes.

Nextion includes hardware part (a set of TFT boards) and software part (Nextion editor). The Nextion TFT board uses only one serial port to communicate. Allows you to avoid the hassle of wiring. We noticed that most engineers spend a lot of time in application development but get unsatisfactory results. In this case, the Nextion editor can use button, text, progress bar, slider, dashboard, etc. to enrich your interface design. There are such bulk components. The drag-and-drop functionality saves you less time in programming, which reduces 99% of your development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Nextion family HMI is easy to adapt to existing projects, you just need to provide a UART.

Note: There is a small power supply test card and a wire for you to test whether the electricity supply is sufficient. How to use it can be seen in the picture below.

Nextion HMI 2.4 Inch Touch TFT LCD Display Features

• Supports internal RTC
• Supports GPIO
• SD Card interface: support max max 32G Micro TF / SD card (FAT32 file format)
• Flash data storage space: 16MB
• EEPROM: 1024 bytes
• RAM: 3584 bytes
• Command buffer: 1024 bytes
• Color: 65K (65536) colors
• Resolution: 320 × 240 pixels
• Adjustable Brightness: 0 ~ 180 nit, the adjustment range is 1%

Definition

• Visual Area: 48.96mm (L) × 36.72mm (W)
• Layout size: 74.4 (L) x 42.72 (W) x 5.8 (H)
• Touch type: Resistive
• Backlight: LED
• Arka ışık ömrü (Ortalama):>30.000 Hours
• Net Weight: 25.8 g
• Recommended power supply: 5V 500mA DC
• Raspberry Pi Compatible Touch Screen
• Arduino Compatible Touch Screen

Package Included

• 1 × 2.4 "Nextion Enhanced HMI Ekran
• 1 × power supply test card
• 1 × 4 pin shield cable

Documents

• Nextion Editoryou can download.
• Nextion HMI Touchscreen TFT LCD DisplaysYou can read our blog post for.
