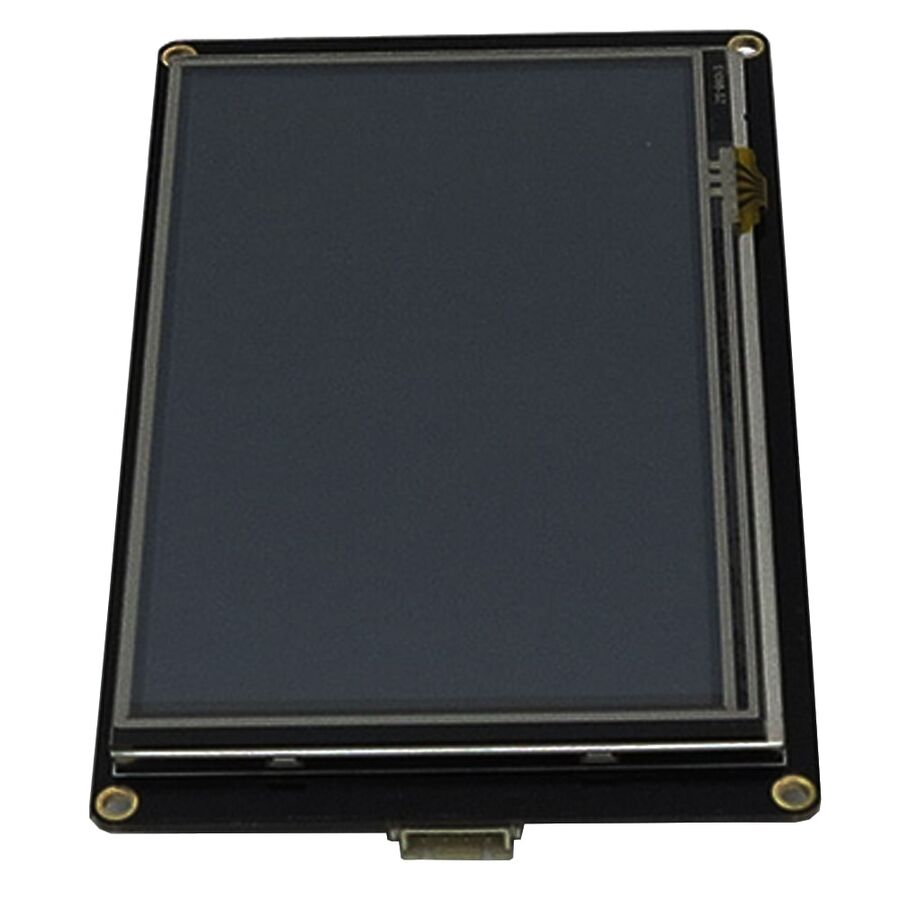

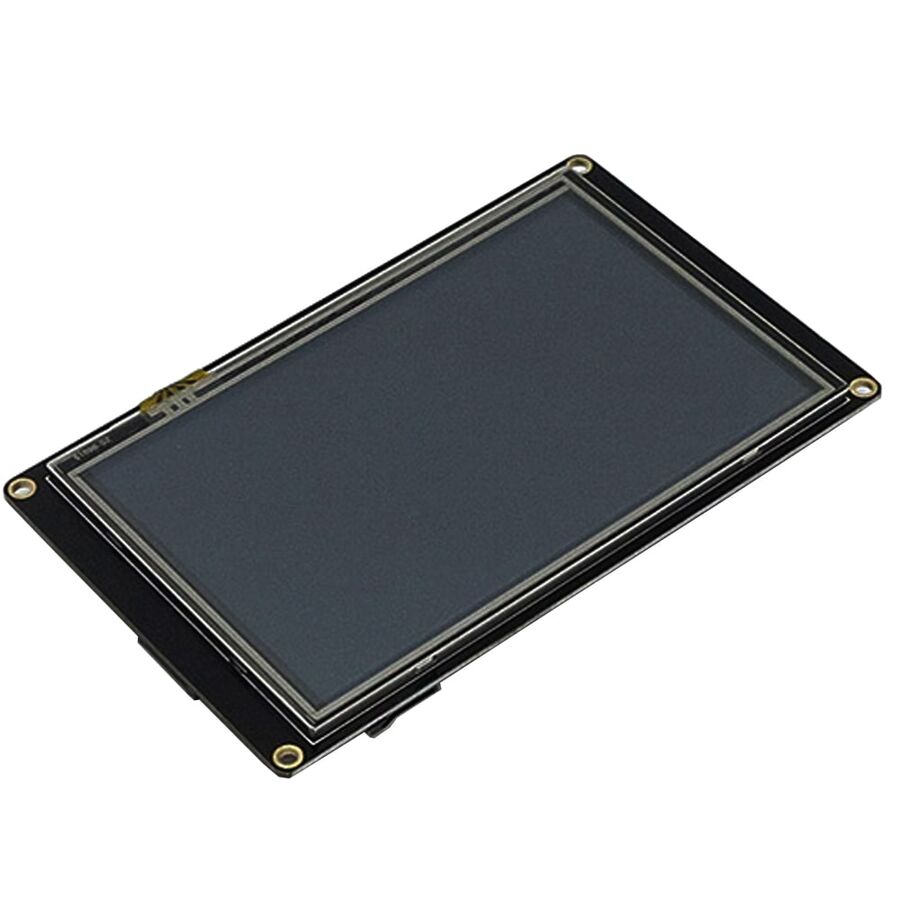

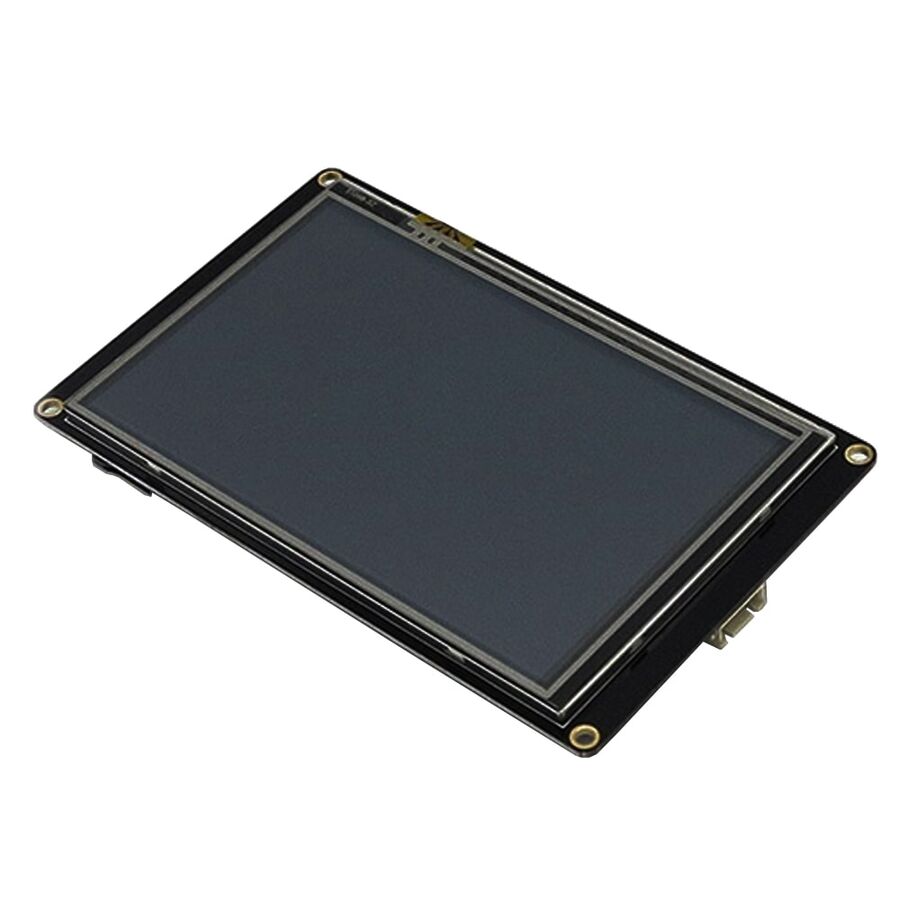

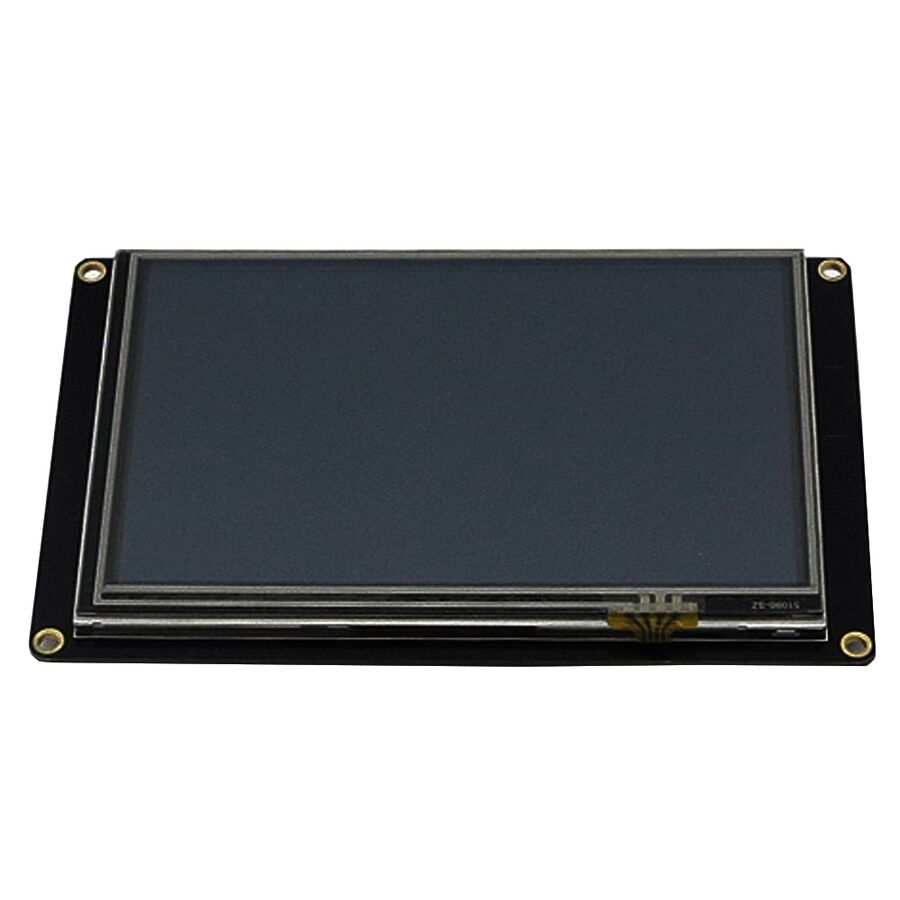

5.0 Inch Nextion HMI Touch TFT Lcd Screen + 8 Port GPIO / 32MB Internal Memory

5 Inch Nextion HMI Touch TFT Lcd Screen + 8 Port GPIO / 32MB Internal Memory

Nextion is a Seamless Human Machine Interface (HMI) solution that acts as a control and visualization interface between human and process, machine, application or device. It is the best solution designed to replace traditional LCD and LED Nixie tube.

Nextion HMI Smart 5 Inch Touchscreen TFT LCD Display

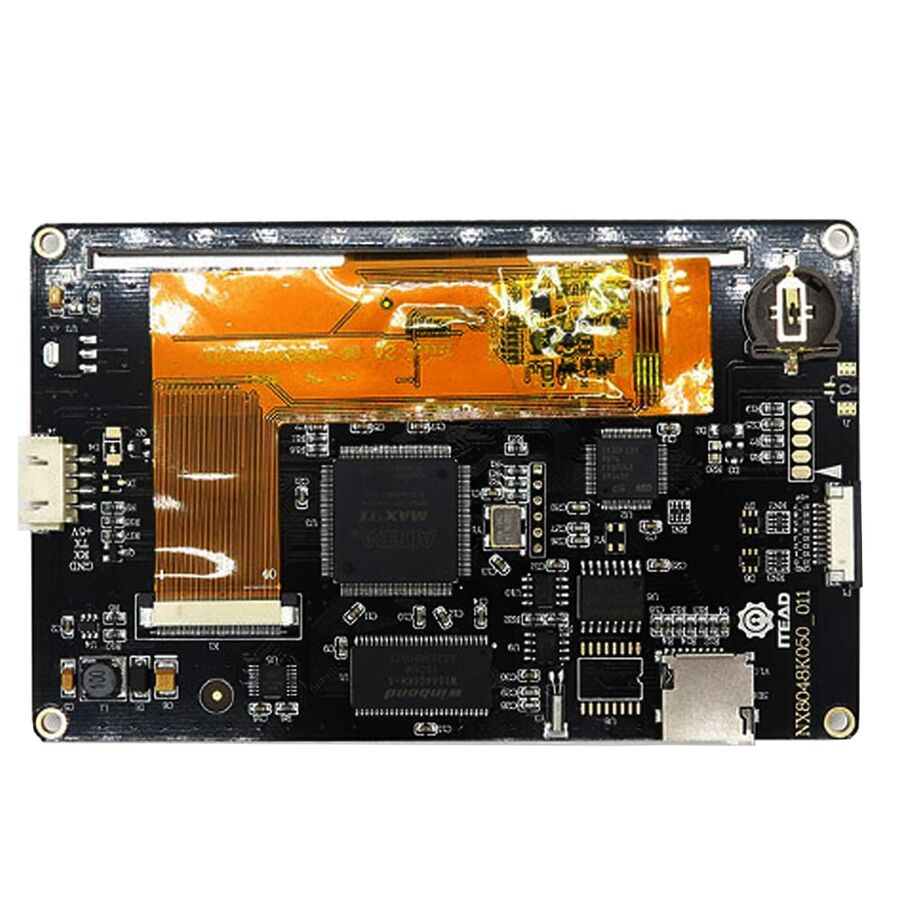

This product consists of a set of TFT boards in the hardware part and - Nextion editor in the software part. The Nextion TFT board uses a single serial port for communication. So you don't have to deal with wiring. We observe that most engineers spend a lot of time in application development but still fail to achieve satisfactory results. The Nextion editor has a lot of useful elements such as buttons, text insertion feature, progress bar, scroll bar, instrumentation panel, and allows for comprehensive interface designs. The drag-and-drop feature reduces the time you will spend on programming by 99%. Thanks to the WYSIWYG editor, it is very easy to design a GUI.

It's easy to adapt Nextion family's HMI products to your existing projects. All you have to do is add a UART.

Nextion HMI Smart 5 Inch Touchscreen TFT LCD Display Features

• Support internal RTC
• Support GPIO
• SD Card interface: support max max 32G Micro TF / SD card (FAT32 file format)
• Flash data storage space: 32MB
• EEPROM: 1024 bytes
• RAM: 8192 bytes
• Command buffer: 1024 bytes
• Color: 65K (65536) colors
• Resolution: 800 × 480 pixels
• Adjustable Brightness: 0 ~ 230 nit, the adjustment range is 1%

Nextion HMI Smart 5 Inch Touchscreen TFT LCD Display Description

• Visual Area: 108mm (L) × 64.8mm (W)
• Layout size: 133.5 (L) × 84 (W) × 6.8 (H)
• Touch type: Resistive
• Backlight: LED
• Arka ışık ömrü (Ortalama):>30.000 Hours
• Net Weight: 128 g
• Recommended power supply: 5V 1A

Easy Screen Design

Compatible Platforms

Connection Format

Coding Interface - Nextion Editor

Documents
