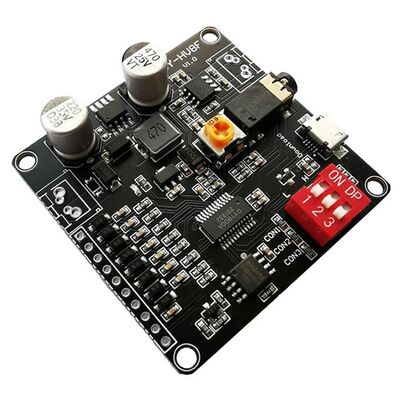

DY-HV8F MP3 Audio Playback Module

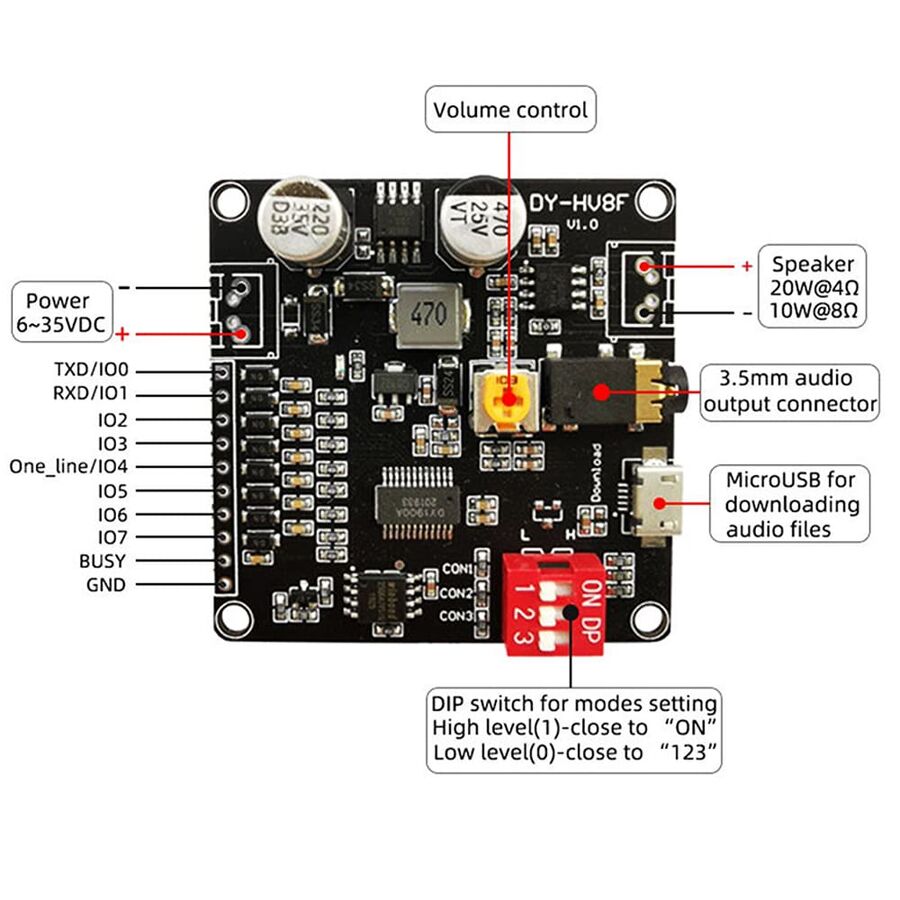

DY-HV8F,it is an independently developed smart sound module. It integrates IO segment trigger, UART serial port control, ONE_line single bus serial port control, standard MP3 and other 7 operating modes, simple DIP switch setting; 20W class D power amplifier, direct drive 4 ~ 8Ω, 10W ~ 20W speakers; Support MP3, WAV decoding format, 64Mbits (8M bytes) flash storage, You can provide music files directly download by micro USB connector.
DY-HV8F Audio Playback MP3 Module Specifications
Manufacturer | China |
Product Category | Sound and Amplifier Modules |
Sherry | DY-HV8F |
Decoding | MP3 and WAV decoding |
Sampling Rate (KHz) | 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 |
DAC Output | 24bit |
Dynamic Range | 90dB |
SNR | 85dB |
Supply Voltage DC | 6 ~ 35V |
Flash Storage | 5.64Mbits (8M bytes) flash storage, you can download music files directly via micro USB connector. |
Drivable | 4Ω loudspeaker output 20W maximum, 8Ω loudspeaker output 10W maximum |
UART | Play 65535 pieces of music with UART control protocol; Play, Pause, Music selection, VOL / - and so on can be controlled. |
Communication Baud Rate | 9600bps |
IO Trigger | You can play 255 pieces of music with the IO trigger. |
One_line | Play music, Play, Pause, Select music, VOL / - and so on can be controlled with the one_line control protocol. |
ESD Protection | ESD protection designed for 8 IOs |
