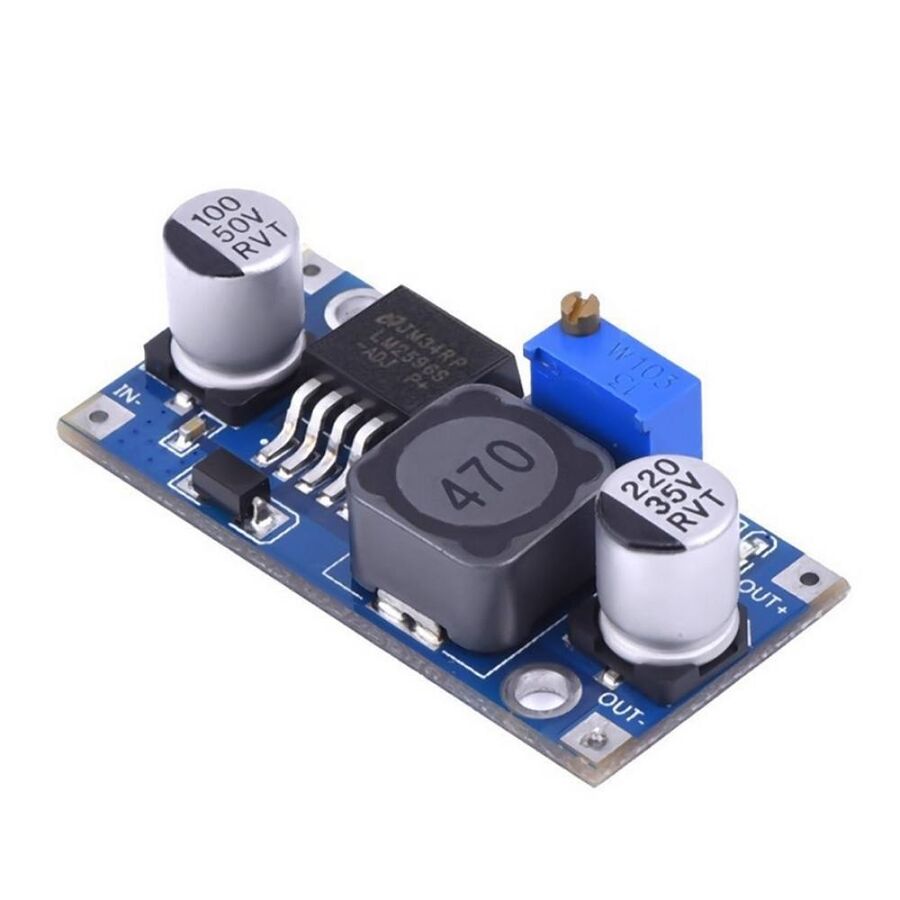

LM2596 Adjustable Voltage Step Down Power Module (4-35V Input - 1-30V Output)

Marka/Menşei: DirencNet
Stok Kodu : DSTK3638

24.46 TL + KDV
29.35 TL KDV Dahil

-

+
Add to Cart
Add to Favorites
Share:
  • Features
  • Payment Options
  • Comments (14)
  • Images

  • LM2596 Voltage Step Down Adjustable Power Module - Arduino Compatible Voltage Regulator

    LM2596 Adjustable DC-DC ConverterYou can regulate the input voltages between 4V DC - 35V DC between 1.23V DC - 30 VDC. You can adjust the output voltage according to your wish by means of the trimpot on it. This module, which is very useful with its small dimensions, contains LM2596 regulator integrated on it. The circuit can carry current up to 3A DC. A small deviation of 30 mV provides a great advantage over other DC-DC converters.

    ATTENTION:Since the product is voltage reducer, the output voltage cannot exceed the input voltage. If you connect a 30V input, you can set the voltage you want in the range of 0-30V. However, if you connect 12V to the input, you can adjust the output in the range of 0-12V.

    LM2596 Voltage Reducer Adjustable Power Module Technical Specifications

    • Module feature: Non-insulated buck
    • Correction mode: Asynchronous correction
    • Size: 48 * 23 * 14mm (Length * Width * Height)
    • Type: LM2596 Adjustable Power Supply Module
    • Input Voltage: DC 4V-35V
    • Output Voltage: DC 1.23V-30V
    • Output Current: 3A (Maximum)
    • Conversion Efficiency: 92% (Highest)
    • Output Ripple: 30mv (Maximum)
    • Switching Frequency: 150KHz
    • Load regulation: 0.5%
    • Voltage regulation: 2.5%
    • Working temperature: -40 degress +85 degress
