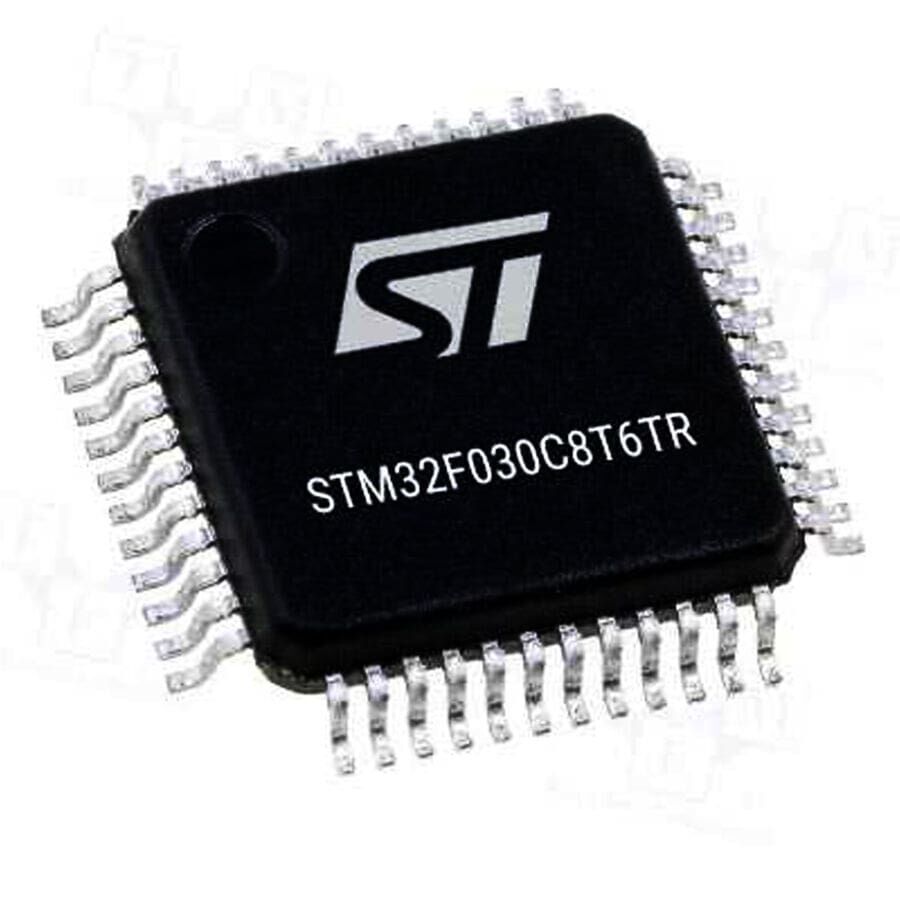

STM32F030C8T6TR LQFP-48 32-Bit 48MHz Microcontroller

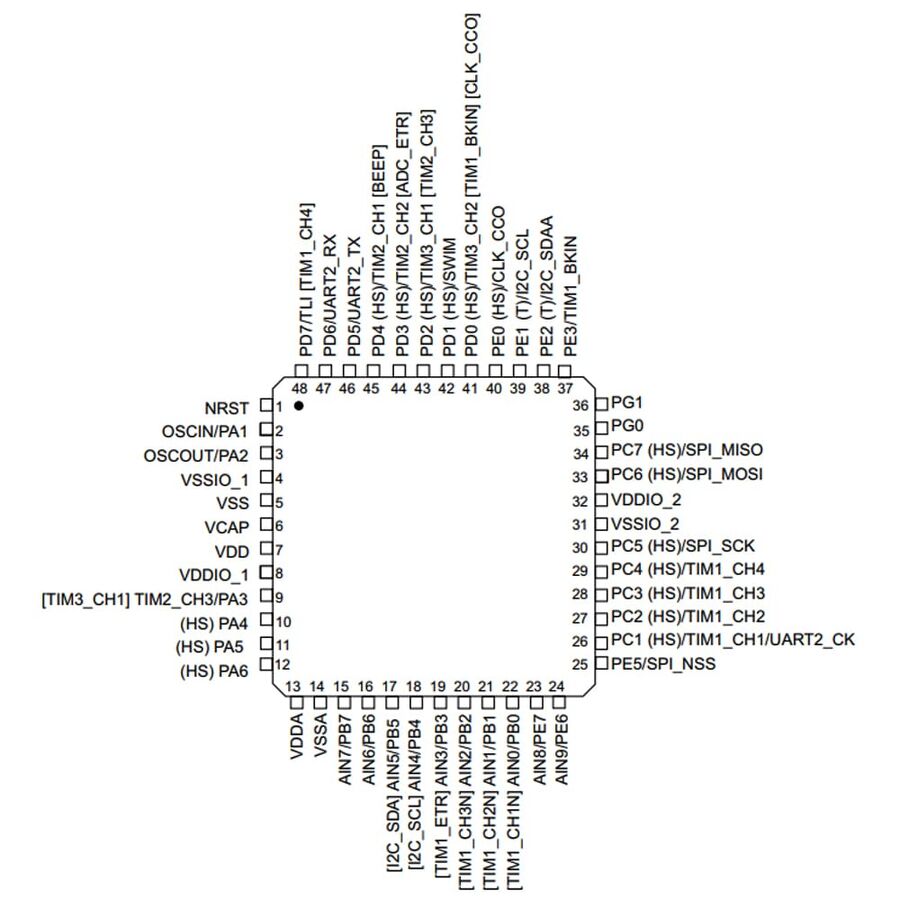

STM STM32F030C8T6TR LQFP-48 32-Bit 48MHz MicrocontrollerThe product is in LQFP-48 sheath and is 32-Bit valued working with 48MHz frequency.Types of MicrocontrollersIt is from. 39 of the 48 pins on it are I / O, ie Input Output pins.
These microcontrollers with memory type FLASH operate between 2.4V and 3.6V supply range, between -40 C ° and +85 C ° temperatures.
STM32F030C8T6TR LQFP-48 32-Bit 48MHz Microcontroller Technical Specifications
Product | STM32F030C8T6TR |
Product Brand | STM |
Product Category | Stm Microcontroller |
Mounting Type | SMT |

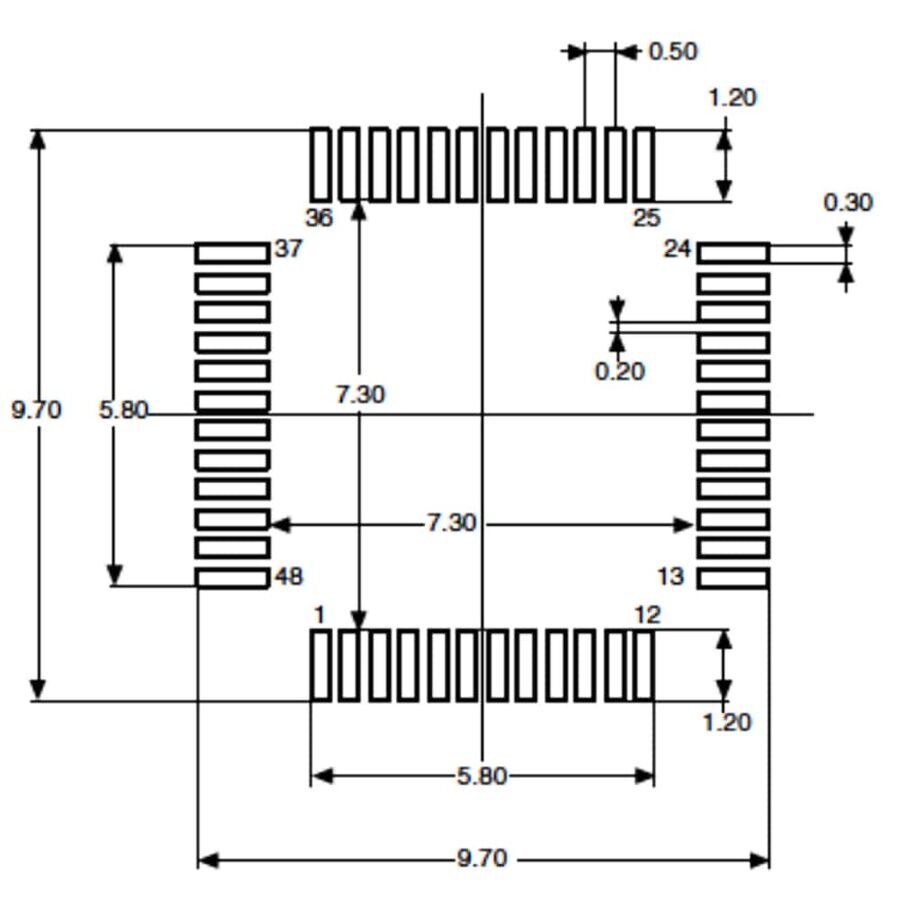

Pack / Box | LQFP48 / 7x7mm |
Memory Type | FLASH |
Number of Bits | 32-Bit |
Frequency | 48MHz |
Program Memory Amount | 64KB (64K x 8) |
RAM Size | 8K x 8 |
EEPROM Size | No |
Number of I / O | 39 |
Feed Range (V) | 2.4V ~ 3.6V |
Operating temperature | -40 ° C ~ + 85 ° C |
Rohs | ROHS |
Documents
- STM32F030C8T6TR DatasheetCheck the file.
