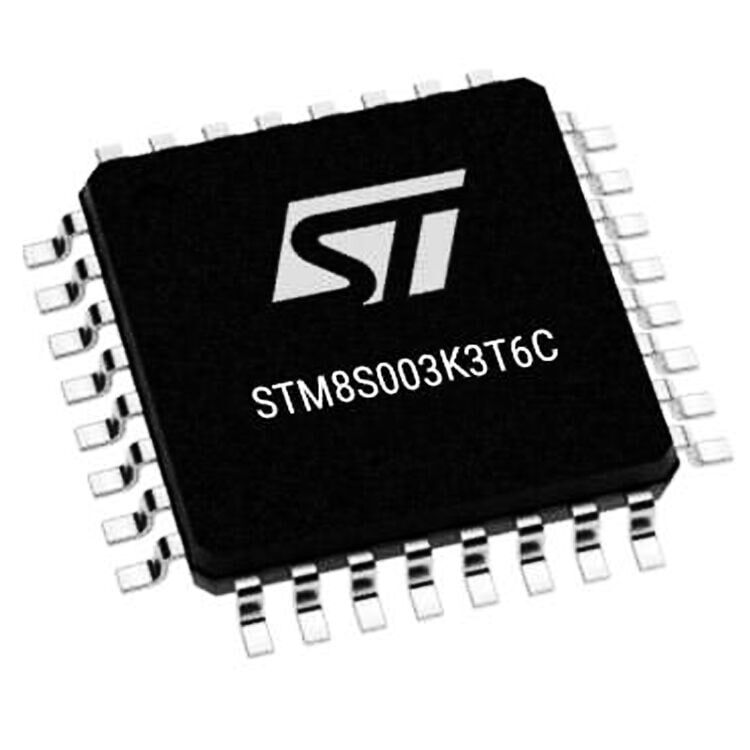

STM8S003K3T6C LQFP-32 8-Bit 16MHz Microcontroller
STM STM8S003K3T6C LQFP-32 8-Bit 16MHz MicrocontrollerThe product is in LQFP-32 sheath and is 8-Bit valued working with 16MHz frequencyTypes of MicrocontrollersIt is from. 28 of the 32 pins on it are I / O, ie Input Output pins.
These microcontrollers with memory type FLASH operate between 2.95V ~ 5.5V supply range and temperatures between -40 C ° and +125 C °.
STM8S003K3T6C LQFP-32 8-Bit 16MHz Microcontroller Technical Specifications
Product | STM8S003K3T6C |
Product Brand | STM |
Product Category | Stm Microcontroller |
Mounting Type | SMT |

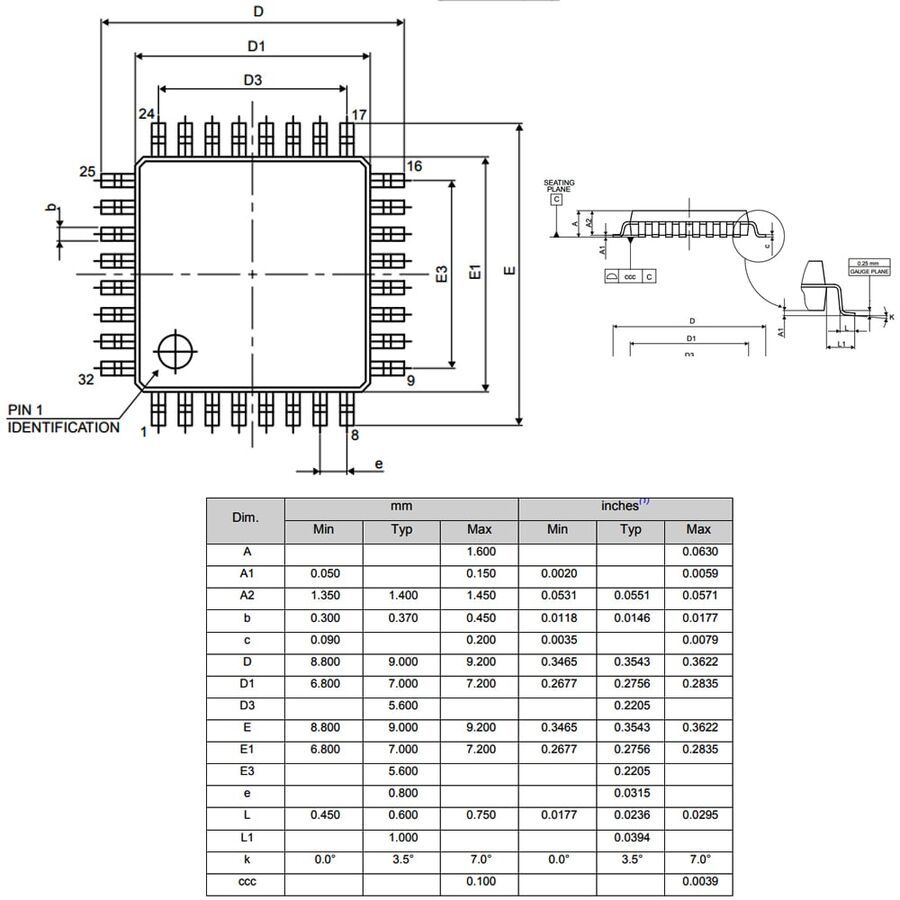

Pack / Box | LQFP32 / 7x7mm |
Memory Type | FLASH |
Number of Bits | 8-Bit |
Frequency | 16Mhz |
Program Memory Amount | 8KB (8K x 8) |
RAM Size | 1 Kbyte |
EEPROM Size | 128 Bytes |
Number of I / O | 28 |
Feed Range (V) | 2.95V ~ 5.5V |
Operating temperature | -40 ° C ~ + 125 ° C |
Rohs | ROHS |
Documents
- STM8S003K3T6C DatasheetCheck the file.
