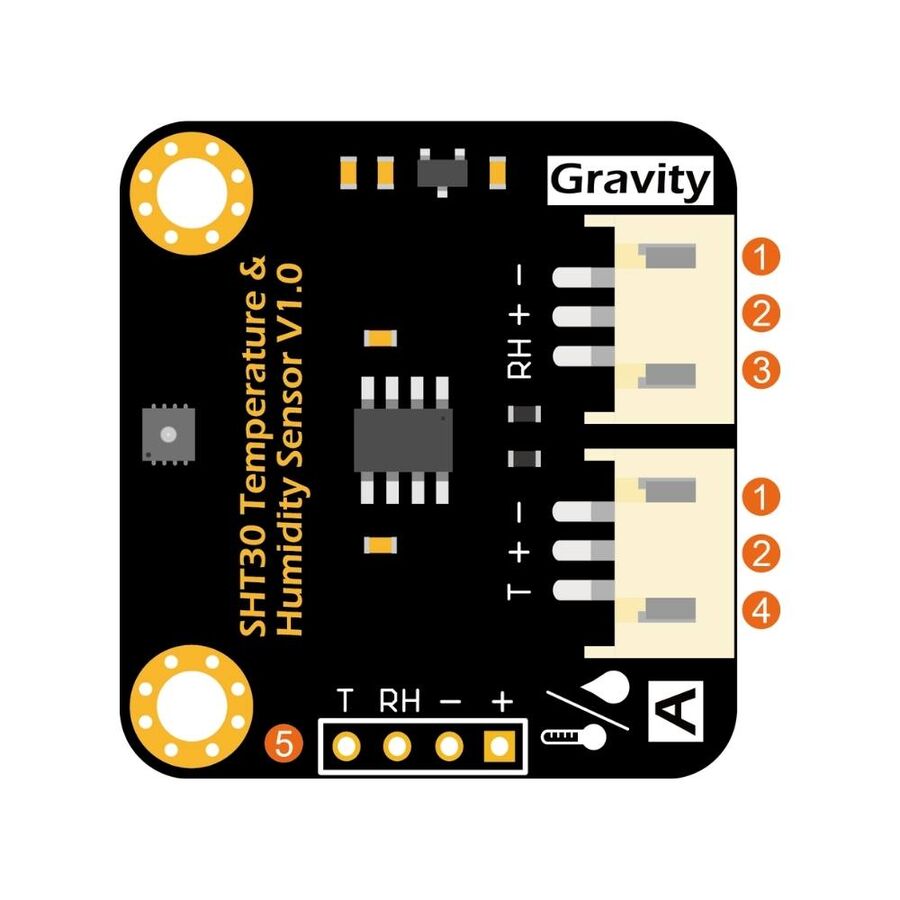

Analog SHT30 Humidity and Temperature Sensor
Gravity: Analog Temperature and Humidity Sensoradopts the new generation SHT30 temperature and humidity sensor from ensirion. Sensirion's CMOSens® technology offers high reliability and long-term stability with low power consumption, fast response and interference immunity thanks to highly integrated capacitive moisture sensing components and band gap temperature sensing components.
The sensor is internally calibrated, linearized and amplified to output analog voltages that are linear with temperature or humidity. Compatible with 3.3V / 5V controllers such as Arduino, micro: bit, ESP32. It is easy to achieve precise and high reliability temperature and humidity detection for urban environmental monitoring, smart buildings, industrial automation, smart home and other Internet of Things applications.
Analog SHT30 Humidity and Temperature Sensor Technical Specifications
Manufacturer | DFRobot |
Product Category | You ask |
Input Voltage | 3.3V ~ 5.5V |
Current Value | 0.5mA |
Dimension Values | 30mm * 32mm |
Weight | 4g |
Response Time (Temperature / Humidity) | 2s / 8s |
Resolution (Temperature / Humidity) | 0.01 ℃ 14bit / 0.006% 14bit |
Documents
- Product Information PageYou can examine.
Useful Links
- Humidity and Temperature SensorsYou can review our products.
- You askYou can review our products.
Gravity: Analog SHT30 Humidity and Temperature Sensor
- Features
- Payment Options
- Comments (0)
- Images
-
Analog SHT30 Humidity and Temperature Sensor
Gravity: Analog Temperature and Humidity Sensoradopts the new generation SHT30 temperature and humidity sensor from ensirion. Sensirion's CMOSens® technology offers high reliability and long-term stability with low power consumption, fast response and interference immunity thanks to highly integrated capacitive moisture sensing components and band gap temperature sensing components.
The sensor is internally calibrated, linearized and amplified to output analog voltages that are linear with temperature or humidity. Compatible with 3.3V / 5V controllers such as Arduino, micro: bit, ESP32. It is easy to achieve precise and high reliability temperature and humidity detection for urban environmental monitoring, smart buildings, industrial automation, smart home and other Internet of Things applications.
Analog SHT30 Humidity and Temperature Sensor Technical Specifications
Manufacturer DFRobot Product Category You ask Input Voltage 3.3V ~ 5.5V Current Value 0.5mA Dimension Values 30mm * 32mm Weight 4g Response Time (Temperature / Humidity) 2s / 8s Resolution (Temperature / Humidity) 0.01 ℃ 14bit / 0.006% 14bit Documents
